DEEP C BAC TIEN PHONG - QUANG YEN TOWN, QUANG NINH PROVINCE (PH1)

Shared

QUANG YEN TOWN, QUANG NINH PROVINCE

Project Highlights

Accessibilities

Building Specifications

Download

Contact Us

Project Highlights

Prime location near China, Hanoi, and key ports

Flexible international standard design with standalone two-storey blocks

LEED Certified Design

Credible developer with extensive Vietnam development and construction experience

Proximity to Queen Bees: Jinko Solar, Skoda, Stavian and Foxconn

Eco industrial park supporting ESG strategy

Economic Zone Incentives

Progressive provincial leadership

Fastest growing region with large population

Accessibilities

Mong Cai Int. Border Gate	189 km \| 3 hours 30 mins
Dinh Vu Deep Sea Port	14 km \| 20 mins
Cat Bi International Airport	20 km \| 30 mins

Building Specifications

Site Area	7.58 ha – 70% construction ratio – LUR 2066
Leasable Area	62,496 sqm premises and 3,528 sqm mezzanine offices Unit size ranging from 2,835 sqm – 4,410 sqm – 5,670 sqm – 11,340 sqm up to maximum 17,640 sqm
Available for Lease	From Dec 2023
Configuration	Terraced Ready Built Hybrid Factory for Lease in total 4 Blocks with max. 12 units Block A1,A2 Dock level floor (Hybrid) – single storey Block A3,A4 Grade Level Floor – Two storey
Office	Per unit: 294 sqm mezzanine offices 250kg/sqm loading and bondek slab and standard bare fit out with toilet groups. Full fit out negotiable
Mezzanine Floor	Block A2 offers 886 sqm mezzanine floor per unit \| Loading 400 kg/sqm
Slab / Loading	Turnkey reinforced Conventional slab with hardener Ground floors 2 tons/sqm loading 2^nd floor 1 ton/sqm loading
Column Spacing	A1& A2 40 x 9 – Pre-Engineered Steel A3& A4 Ground Floor 10×10 \| 2^nd Storey 20×10 / 30×10 Reinforced Concrete
Clear Height (min)	Single Storey: 8 meters at eaves \| Two storey: 6 m below 5m above
Loading Bays	Per unit: 1-2 loading bays, internal court for dry loading and roller shutter doors. For hybrid units in block A1,A2 MHE ramp and dock levelers are included
Wall / Roof	2.4 brick & metal sheet to eave with 5% translucent panels and steel louvers Insulated Roofsheet
Truck Court Depth	Up to 30 (single) – width of central road 9 meter
Parking	Lots for autos, truck/ bus parking and motorbikes (behind factory along service lane)
Electrical	400-600 kVA per unit, 3 phase
Firefighting	Compliant with latest TCVN including sprinkler and smoke extraction system
Green Building Design	LEED certified with solar panels installed over full roof. Core5 is situated in an Eco-Industrial Park

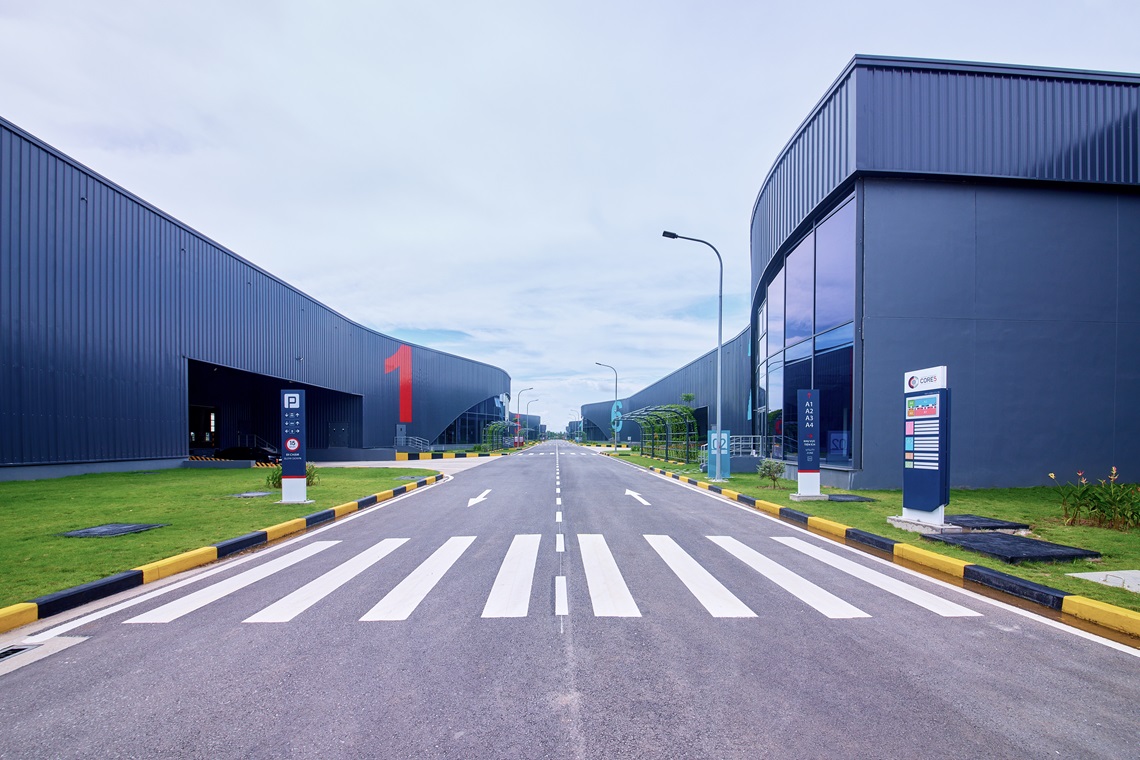

CORE5 FACTORY VILLAGE

The Core5 Factory Village is premiering in Deep C Quang Ninh – it’s where strengths of the strategic location, strong project design and American standard operator all come together.

According to LEED certified design, the terraced introvert set up with the curving curtainwall off the mezzanine offices in a spacious loading court brings in a lot of natural light into office and workshop and creates the specific Core5 identity known as “Factory Village”. This emphasizes the intention to build full serviced communities where it is easy to attract and retain human resources and create symbiosis among the operating businesses. Cementing the Core5 brand identity further as terraced should be more than just sharing a wall.

Nearly 69,000 sqm will come only all at once early 2024
